Model: DT-16361U
Features:
-
High-perfomance, High-capacity
-
High reliability
-
Abundant functions and features
- max 500Mbpsrecording rate; max 16 HDD up to 96 TB storage
- Embedded Linux; RAID 0/1/5/6/10, RAID X; HDD hot spare
- Redundant Power Supply; HDD hot-swap; Ethernet trunk
- Multiple units management; Alarm management
- Modular architecture

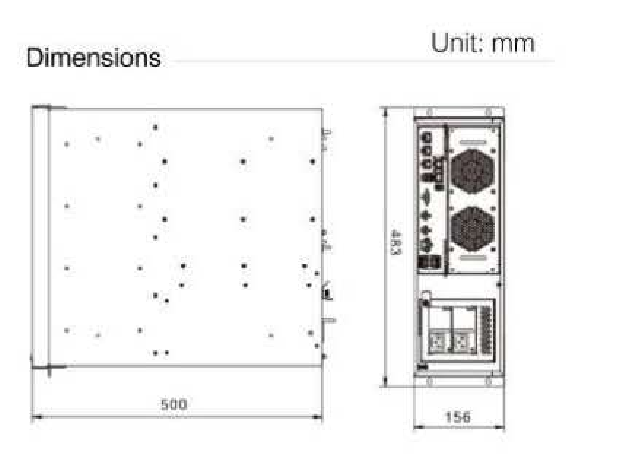

PRODUCT DIMENSIONS
SPECIFICATION：
|
Model |
DT-16361U |
|
Product Name |
IPSAN |
|
General |
|
|
Disk Interface |
SATA : 1TB, 2TB,3TB,4TB,6TB,8TB |
|
RAID |
RAID,1,5,6,10,RAID X |
|
HDD Hot-swap |
Supported |
|
Max Internal HDDs |
16x3.5" HDD / Max128TB(up to 8TB/each) |
|
Storage Management |
|
|
Recording rate |
500Mbps |
|
Disk management |
S.M.A.R.T (Self-Monitoring,Analysis and Reporting) |
|
Device Management |
|
|
Management |
Web-based GUI, Multiple units management |
|
Alarm |
Sound,LED,Email,GUI Warning |
|
Network |
|
|
Network Protocols Supported |
TCP/IP,UDP,HTTP,DHCP,FTP,IPv4,ISCSI,NAS,NRU |
|
Trunk |
Supported |
|
Interfaces |
|
|
Ethernet |
3 x Gigibit network port,RJ45 interface |
|
Output |
VGA output for debugging |
|
USB |
2 x USB3.0 ,for keyboard or user data backup |
|
Environmental |
|
|
Operaing Temperature |
10%°C ~ 35%°C |
|
Operaing Humidity |
10% ~ 90% |
|
Electrical |
|
|
Power |
100~240V AC 50~60Hz / Redundant Power Supply |
|
Power Consumption |
Max. 216W(HDD not included) |
|
Mechanical |
|
|
Weight |
Approx 20kg (HDD notincluded,redundant power supply) |
|
Dimensions |
156 x 483 x 500mm/6.14" x 19.02" x 19.69" |
