IP 10X MINI PTZ BULLET CAMERA
HS-SCB415IDP-V10
Support Onvif
80M IR Distance
All Cast Aluminium Material
Powerful 10x optical zoom
IP66 protection standard

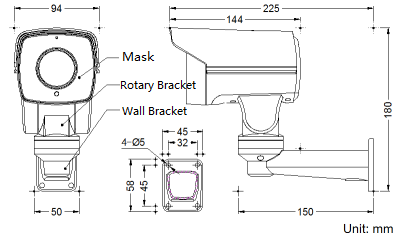

PRODUCT DIMENSIONS
CAMERA SPECIFICATION:
Model |
HS-SCB415IDP-V10 |
Product Name |
IP 10X MINI PTZ BULLET CAMERA |
Image Sensor |
|
Sensor |
1/2.8" Sony Exmor CMOS Sensor |
Effective Pixels |
1080p(1920x1080) |
Lens |
5.1-51mm |
IRIS |
F2.0 |
Noise Reduction |
2D/3D-DNR |
Day & Night |
ICR |
Electronic Shutter |
1/25s ~ 1/10000s |
Min. Illumination |
0 Lux(IR on) |
WDR |
Support |
Noise Reduction |
3D |
Mirror Image |
Level, Tilt, Centre |
Connectivity |
|
Network |
RJ45 (+PoE) |
SD Card |
Optional |
Audio & Alarm |
Optional |
Parameter |
|
Pan Speed |
Pan Speed: 0.5°-15°/s; Pan Rotation Range: 0°-250° |
Tilt Speed |
Tilt Speed: 0.5°-10°/s; Tilt Rotation Range :-10°-55° |
Preset |
255 |
Auto Scan |
8 groups(setup left and right boundary) |
Auto Cruising |
8 groups(32 Preset/group) |
Pattern Scanning |
4 groups |
Video Analysis Dimming |
Support |
Timing |
Support |
OSD Menu |
English/Chinese |
Housing |
Metal |
Power Supply |
DC12V/POE |
Protection Level |
IP66/the secondary lightning protection, 3000V anti-surge design |
Working Temp |
-35℃-+55℃ |
Working Humidity |
<95%, no condensing |
Power consumption |
≤12W |
Weight |
920g |
Others |
Wall Bracket |
