AHD/CVI/TVI/CVBS SPEED DOME CAMERA
HS-RMC217XI-KSX20IC2
-
HD-AHD/CVI/TVI/CVBS
-
150M IR Distance
-
All Cast Aluminium Material
-
Powerful 20x optical zoom
-
Video Analysis Light-Adjustment Technology
- HD-AHD/CVI/TVI/CVBS
- 150M IR Distance
- All Cast Aluminium Material
- Powerful 20x optical zoom
- Analysis Light-Adjustment Technology

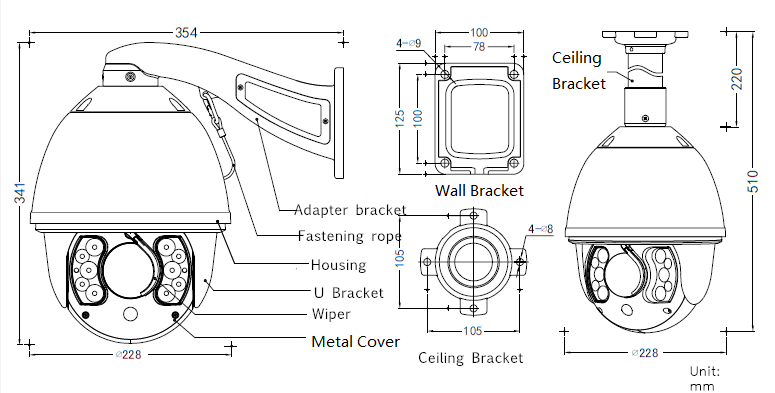

PRODUCT DIMENSIONS
CAMERA SPECIFICATION：
|
Model |
HS-RMC217XI-KSX20IC2 |
|
Product Name |
AHD/CVI/TVI/CVBS 4IN1 SPEED DOME CAMERA |
|
Image Sensor |
|
|
Sensor |
1/2.8" CMOS Sensor |
|
Resolution |
1080P(1920x1080) |
|
Lens |
4.9-97mm |
|
Noise Reduction |
2DNR/3DNR |
|
Day & Night |
on/off/auto |
|
Electronic Shutter |
1/1s ~ 1/10000s |
|
Min. Illumination |
0.05 Lux (Colour) , 0.01 Lux (B/W) |
|
BLC |
ON/OFF |
|
White balance |
Auto/Manual |
|
Connectivity |
|
|
Video |
BNC(AHD/CVI/TVI/CVBS) |
|
Alarm |
Optional |
|
Parameter |
|
|
Pan Speed |
Pan Speed: 0.01°-350°/s |
|
Tilt Speed |
Tilt Speed: 0.01°-120°/s |
|
Preset |
256 |
|
Auto Cruising |
8 groups（32 Preset/group） |
|
Auto Scan |
8 groups（setup left and right boundary） |
|
Pattern Scanning |
4 groups |
|
Wiper |
Optional |
|
OSD Menu |
English/Chinese |
|
Housing |
Metal |
|
Power Supply |
DC12V±10% |
|
Protection Level |
IP66/the secondary lightning protection, 3000V anti-surge design |
|
Working Temp |
-35℃-+60℃ |
|
Working Humidity |
<90%, no condensing |
|
Power consumption |
≤50W |
|
Weight |
6.5KG |
|
Size |
6inch |
